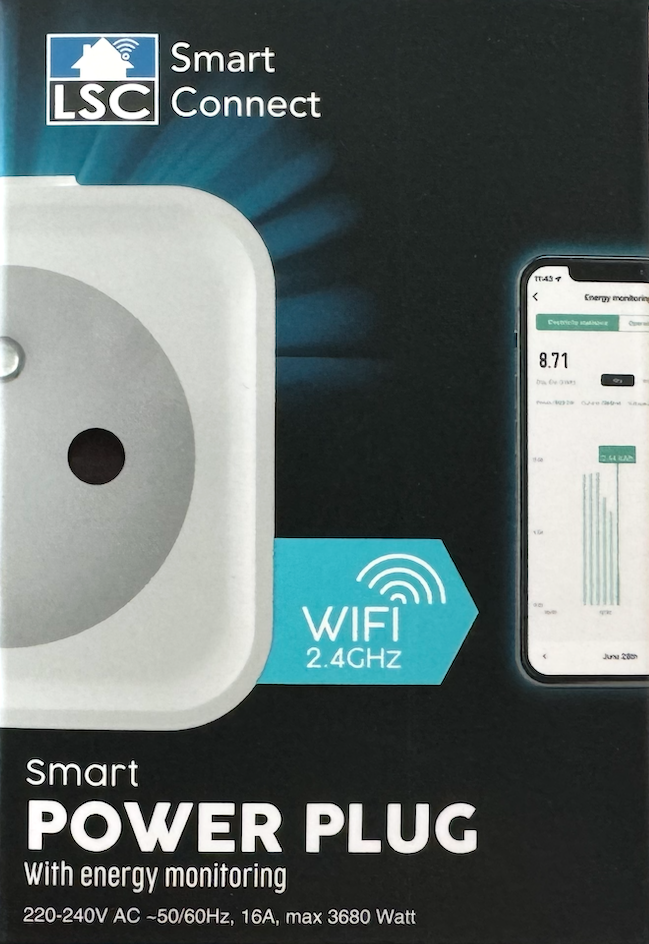

ESP32 Power Plug with Energy Meter

/**
   Copyright 2026 Achim Pieters | StudioPieters®

   Permission is hereby granted, free of charge, to any person obtaining a copy
   of this software and associated documentation files (the "Software"), to deal
   in the Software without restriction, including without limitation the rights
   to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
   copies of the Software, and to permit persons to whom the Software is
   furnished to do so, subject to the following conditions:

   The above copyright notice and this permission notice shall be included in all
   copies or substantial portions of the Software.

   THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
   IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
   FITNESS FOR A PARTICULAR PURPOSE AND NON INFRINGEMENT. IN NO EVENT SHALL THE
   AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
   WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
   CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

   for more information visit https://www.studiopieters.nl
 **/

#include <stdio.h>
#include <string.h>
#include <stdbool.h>
#include <stdlib.h>
#include <math.h>
#include <esp_log.h>
#include <esp_err.h>
#include <nvs.h>
#include <nvs_flash.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <driver/gpio.h>
#include <esp_timer.h>
#include <homekit/homekit.h>
#include <homekit/characteristics.h>

#include "esp32-lcm.h"
#include "custom_charcteristc.h"
#include <button.h>

// Step 4: BL0937 component is present and wired to HomeKit.
// We initialize the driver and periodically push Voltage/Current/Power/Energy
// values into custom characteristics under the existing Outlet service.
#include "bl0937.h"

// -------- GPIO configuration (set these in sdkconfig) --------
#define BUTTON_GPIO      CONFIG_ESP_BUTTON_GPIO
#define RELAY_GPIO       CONFIG_ESP_RELAY_GPIO
#define BLUE_LED_GPIO    CONFIG_ESP_BLUE_LED_GPIO
#define RED_LED_GPIO     CONFIG_ESP_RED_LED_GPIO   // Rode LED: WiFi/lifecycle-indicator

static const char *RELAY_TAG   = "RELAY";
static const char *BUTTON_TAG  = "BUTTON";
static const char *IDENT_TAG   = "IDENT";
static const char *BL0937_TAG  = "BL0937";
static const char *ENERGY_TAG  = "ENERGY";

// Persisted cumulative energy so it survives reboots.
// We store energy in milli-Wh (mWh) to keep it compact and avoid float issues.
static const char *ENERGY_NVS_NAMESPACE = "bl0937";
static const char *ENERGY_NVS_KEY_MWH   = "energy_mwh";
static const char *CAL_NVS_KEY_VCAL     = "v_cal";
static const char *CAL_NVS_KEY_ICAL     = "i_cal";
static const char *CAL_NVS_KEY_PCAL     = "p_cal";

// Relay state (used by both the HomeKit relay service and the BL0937 watchdog)
// NOTE: keep this definition above tasks that reference it.
static bool relay_on = false;

// Base cumulative energy loaded from NVS (mWh). Total energy = base + (energy since boot).
static uint64_t s_energy_mwh_base = 0;

// Flag set by the button handler when energy is reset. The measurement task
// uses it to re-sync its internal change tracking and force HomeKit updates.
static volatile bool s_energy_reset_requested = false;

static esp_err_t energy_load_from_nvs(void)
{
        nvs_handle_t nvs;
        esp_err_t err = nvs_open(ENERGY_NVS_NAMESPACE, NVS_READONLY, &nvs);
        if (err != ESP_OK) {
                ESP_LOGW(ENERGY_TAG, "NVS open (read) failed (%s). Using 0.", esp_err_to_name(err));
                s_energy_mwh_base = 0;
                return err;
        }

        uint64_t val = 0;
        err = nvs_get_u64(nvs, ENERGY_NVS_KEY_MWH, &val);
        nvs_close(nvs);

        if (err == ESP_OK) {
                s_energy_mwh_base = val;
                ESP_LOGI(ENERGY_TAG, "Loaded energy from NVS: %llu mWh", (unsigned long long)val);
                return ESP_OK;
        }

        if (err == ESP_ERR_NVS_NOT_FOUND) {
                ESP_LOGI(ENERGY_TAG, "No stored energy found in NVS yet (fresh install). Using 0.");
                s_energy_mwh_base = 0;
                return ESP_OK;
        }

        ESP_LOGW(ENERGY_TAG, "NVS get_u64 failed (%s). Using 0.", esp_err_to_name(err));
        s_energy_mwh_base = 0;
        return err;
}

static esp_err_t energy_save_to_nvs(uint64_t energy_mwh)
{
        nvs_handle_t nvs;
        esp_err_t err = nvs_open(ENERGY_NVS_NAMESPACE, NVS_READWRITE, &nvs);
        if (err != ESP_OK) {
                ESP_LOGW(ENERGY_TAG, "NVS open (write) failed (%s)", esp_err_to_name(err));
                return err;
        }

        err = nvs_set_u64(nvs, ENERGY_NVS_KEY_MWH, energy_mwh);
        if (err == ESP_OK) {
                err = nvs_commit(nvs);
        }
        nvs_close(nvs);

        if (err != ESP_OK) {
                ESP_LOGW(ENERGY_TAG, "NVS save failed (%s)", esp_err_to_name(err));
        }
        return err;
}

static void calibration_load_from_nvs(bl0937_config_t *cfg)
{
        if (!cfg) return;

        nvs_handle_t nvs;
        esp_err_t err = nvs_open(ENERGY_NVS_NAMESPACE, NVS_READONLY, &nvs);
        if (err != ESP_OK) {
                ESP_LOGW(ENERGY_TAG, "NVS open (cal read) failed (%s). Using menuconfig defaults.", esp_err_to_name(err));
                return;
        }

        float vcal = cfg->voltage_calibration;
        float ical = cfg->current_calibration;
        float pcal = cfg->power_calibration;

        size_t len = sizeof(float);
        if (nvs_get_blob(nvs, CAL_NVS_KEY_VCAL, &vcal, &len) != ESP_OK) vcal = cfg->voltage_calibration;
        len = sizeof(float);
        if (nvs_get_blob(nvs, CAL_NVS_KEY_ICAL, &ical, &len) != ESP_OK) ical = cfg->current_calibration;
        len = sizeof(float);
        if (nvs_get_blob(nvs, CAL_NVS_KEY_PCAL, &pcal, &len) != ESP_OK) pcal = cfg->power_calibration;

        nvs_close(nvs);

        // Clamp to sane ranges to prevent absurd Eve/Home displays.
        if (!isfinite(vcal) || vcal < 0.5f || vcal > 2.0f) vcal = cfg->voltage_calibration;
        if (!isfinite(ical) || ical < 0.5f || ical > 2.0f) ical = cfg->current_calibration;
        if (!isfinite(pcal) || pcal < 0.5f || pcal > 2.0f) pcal = cfg->power_calibration;

        cfg->voltage_calibration = vcal;
        cfg->current_calibration = ical;
        cfg->power_calibration   = pcal;

        ESP_LOGI(ENERGY_TAG, "Calibration (NVS/menuconfig): V=%.6f I=%.6f P=%.6f", (double)vcal, (double)ical, (double)pcal);
}

// BL0937 -> HomeKit update interval
// How often we read the BL0937 and push values to HomeKit.
// Can be overridden via menuconfig (StudioPieters -> BL0937 Update Period).
#if defined(CONFIG_ESP_BL0937_UPDATE_PERIOD_MS)
#define BL0937_UPDATE_PERIOD_MS CONFIG_ESP_BL0937_UPDATE_PERIOD_MS
#else
#ifndef BL0937_UPDATE_PERIOD_MS
#define BL0937_UPDATE_PERIOD_MS 1000
#endif
#endif

// These characteristics are defined later in this file (Step 3).
// Energy meter characteristics are defined in this file and attached to the Outlet service.
// Use these names everywhere to avoid duplicate/copy issues with homekit_characteristic_t.
extern homekit_characteristic_t energy_voltage;
extern homekit_characteristic_t energy_current;
extern homekit_characteristic_t energy_power;
extern homekit_characteristic_t energy_energy;

// ---------- Status LED (RED) state machine ----------
// The red LED is used as a lifecycle indicator:
// - WiFi not ready / provisioning: solid ON
// - Normal: OFF
// - BL0937 error: 1 blink every 2 seconds
typedef enum {
        LED_MODE_WIFI_WAIT = 0,
        LED_MODE_NORMAL_OFF,
        LED_MODE_BL0937_ERROR,
} led_mode_t;

static volatile led_mode_t s_led_mode = LED_MODE_WIFI_WAIT;

static void bl0937_homekit_task(void *arg)
{
        (void)arg;

        // Init + start driver (single place; do NOT init in app_main as well)
        bl0937_config_t cfg = bl0937_config_default();
        calibration_load_from_nvs(&cfg);

        esp_err_t err = bl0937_init(&cfg);
        if (err != ESP_OK) {
                ESP_LOGE(BL0937_TAG, "bl0937_init failed: %s", esp_err_to_name(err));
                vTaskDelete(NULL);
                return;
        }

        err = bl0937_start();
        if (err != ESP_OK) {
                ESP_LOGE(BL0937_TAG, "bl0937_start failed: %s", esp_err_to_name(err));
                vTaskDelete(NULL);
                return;
        }

        // Restore cumulative energy base from NVS.
        (void)energy_load_from_nvs();

        // Persist total energy every 60s (mWh integer), so it survives reboots.
        TickType_t next_persist = xTaskGetTickCount() + pdMS_TO_TICKS(60000);

        ESP_LOGI(ENERGY_TAG, "BL0937 -> HomeKit task started (period=%d ms)", BL0937_UPDATE_PERIOD_MS);

        // --- Eve/Home polish ---
        // 1) Smooth noisy signals (EMA)
        // 2) Round to stable decimals (Eve graphs hate raw jitter)
        // 3) Rate-limit notifications (avoid HomeKit notify spam)
        // 4) Threshold updates (only meaningful changes)
        const float EMA_ALPHA_V = 0.20f;
        const float EMA_ALPHA_I = 0.20f;
        const float EMA_ALPHA_P = 0.20f;

        // Notify thresholds
        const float V_DELTA = 0.5f;     // V
        const float I_DELTA = 0.02f;    // A
        const float P_DELTA = 1.0f;     // W
        const float E_DELTA = 0.001f;   // kWh (1Wh)

        // Notify pacing
        const int64_t MIN_NOTIFY_US = 2LL * 1000LL * 1000LL; // 2 seconds

        float v_f = NAN, c_f = NAN, p_f = NAN;
        float last_v = NAN, last_c = NAN, last_p = NAN, last_e_kwh = NAN;
        int64_t last_v_notify_us = 0, last_c_notify_us = 0, last_p_notify_us = 0, last_e_notify_us = 0;

        // Error detection for BL0937 signal integrity (drives RED LED blink)
        int invalid_ticks = 0;
        int valid_recover_ticks = 0;

        while (true) {
                if (s_energy_reset_requested) {
                        s_energy_reset_requested = false;

                        // Reset smoothing + change detection so the next loop publishes fresh values.
                        v_f = c_f = p_f = NAN;
                        last_v = last_c = last_p = last_e_kwh = NAN;
                        last_v_notify_us = last_c_notify_us = last_p_notify_us = last_e_notify_us = 0;

                        // Publish a zero snapshot immediately (Home app feedback).
                        energy_voltage.value = HOMEKIT_FLOAT(0.0f);
                        homekit_characteristic_notify(&energy_voltage, energy_voltage.value);

                        energy_current.value = HOMEKIT_FLOAT(0.0f);
                        homekit_characteristic_notify(&energy_current, energy_current.value);

                        energy_power.value = HOMEKIT_FLOAT(0.0f);
                        homekit_characteristic_notify(&energy_power, energy_power.value);

                        energy_energy.value = HOMEKIT_FLOAT(0.0f);
                        homekit_characteristic_notify(&energy_energy, energy_energy.value);
                }

                const bl0937_measurements_t m = bl0937_get();

                // --- BL0937 validity watchdog (for stable Home/Eve behaviour) ---
                // When the relay is OFF, it's normal for there to be no meaningful load.
                // In that state we suppress the BL0937 "error blink" and reset the watchdog.
                if (!relay_on) {
                        invalid_ticks = 0;
                        valid_recover_ticks = 0;
                        if (s_led_mode == LED_MODE_BL0937_ERROR) {
                                s_led_mode = LED_MODE_NORMAL_OFF;
                        }
                } else {
                        const bool ok_now = (m.valid_voltage && m.valid_current && m.valid_power);
                        if (!ok_now) {
                                valid_recover_ticks = 0;
                                invalid_ticks++;
                        } else {
                                invalid_ticks = 0;
                                valid_recover_ticks++;
                        }

                        // After ~5 seconds of invalid data, indicate hardware/driver issue.
                        if (invalid_ticks * BL0937_UPDATE_PERIOD_MS >= 5000) {
                                /* disabled red error blink */
                        }
                        // If we recovered and are stable again for ~2 seconds, clear error.
                        if (s_led_mode == LED_MODE_BL0937_ERROR && valid_recover_ticks * BL0937_UPDATE_PERIOD_MS >= 2000) {
                                s_led_mode = LED_MODE_NORMAL_OFF;
                        }
                }

                // When not yet "valid" we still publish 0.0 (keeps Home app happy), but
                // we log the raw Hz values so calibration/debugging stays possible.
                if (!m.valid_voltage || !m.valid_current || !m.valid_power) {
                        ESP_LOGD(BL0937_TAG, "raw: cf=%.2fHz cfu=%.2fHz cfi=%.2fHz (valid V/I/P=%d/%d/%d)",
                                 (double)m.cf_hz, (double)m.cfu_hz, (double)m.cfi_hz,
                                 m.valid_voltage, m.valid_current, m.valid_power);
                }

                float v = (m.valid_voltage ? m.voltage_v : 0.0f);
                float c = (m.valid_current ? m.current_a : 0.0f);
                float p = (m.valid_power   ? m.power_w   : 0.0f);

                // Clamp and sanitize (Eve/Home dislikes NaN/inf/negative spikes)
                if (!isfinite(v) || v < 0.0f) v = 0.0f;
                if (!isfinite(c) || c < 0.0f) c = 0.0f;
                if (!isfinite(p) || p < 0.0f) p = 0.0f;

                // Smooth (EMA) only when we have valid signals
                if (isnan(v_f)) v_f = v; else v_f = v_f * (1.0f - EMA_ALPHA_V) + v * EMA_ALPHA_V;
                if (isnan(c_f)) c_f = c; else c_f = c_f * (1.0f - EMA_ALPHA_I) + c * EMA_ALPHA_I;
                if (isnan(p_f)) p_f = p; else p_f = p_f * (1.0f - EMA_ALPHA_P) + p * EMA_ALPHA_P;

                // Rounding/formatting (stable UI)
                const float v_out = roundf(v_f * 10.0f) / 10.0f;         // 0.1V
                const float c_out = roundf(c_f * 1000.0f) / 1000.0f;     // 0.001A
                const float p_out = roundf(p_f);                         // 1W

                // Total energy: base (NVS) + since-boot counter (from driver)
                const uint64_t e_since_boot_mwh = (uint64_t)((double)m.energy_wh * 1000.0);
                const uint64_t e_total_mwh = s_energy_mwh_base + e_since_boot_mwh;
                float e_total_kwh = (float)e_total_mwh / 1000000.0f;     // mWh -> kWh
                if (!isfinite(e_total_kwh) || e_total_kwh < 0.0f) e_total_kwh = 0.0f;
                e_total_kwh = roundf(e_total_kwh * 1000.0f) / 1000.0f;   // 0.001 kWh

                const int64_t now_us = esp_timer_get_time();

                // Update HomeKit characteristics only when meaningful AND rate-limited.
                if (isnan(last_v) || (fabsf(v_out - last_v) >= V_DELTA && (now_us - last_v_notify_us) >= MIN_NOTIFY_US)) {
                        last_v = v_out;
                        last_v_notify_us = now_us;
                        energy_voltage.value = HOMEKIT_FLOAT(v_out);
                        homekit_characteristic_notify(&energy_voltage, energy_voltage.value);
                }

                if (isnan(last_c) || (fabsf(c_out - last_c) >= I_DELTA && (now_us - last_c_notify_us) >= MIN_NOTIFY_US)) {
                        last_c = c_out;
                        last_c_notify_us = now_us;
                        energy_current.value = HOMEKIT_FLOAT(c_out);
                        homekit_characteristic_notify(&energy_current, energy_current.value);
                }

                if (isnan(last_p) || (fabsf(p_out - last_p) >= P_DELTA && (now_us - last_p_notify_us) >= MIN_NOTIFY_US)) {
                        last_p = p_out;
                        last_p_notify_us = now_us;
                        energy_power.value = HOMEKIT_FLOAT(p_out);
                        homekit_characteristic_notify(&energy_power, energy_power.value);
                }

                if (isnan(last_e_kwh) || (fabsf(e_total_kwh - last_e_kwh) >= E_DELTA && (now_us - last_e_notify_us) >= MIN_NOTIFY_US)) {
                        last_e_kwh = e_total_kwh;
                        last_e_notify_us = now_us;
                        energy_energy.value = HOMEKIT_FLOAT(e_total_kwh);
                        homekit_characteristic_notify(&energy_energy, energy_energy.value);
                }

                // Persist cumulative energy periodically so it survives a reboot.
                if (xTaskGetTickCount() >= next_persist) {
                        next_persist = xTaskGetTickCount() + pdMS_TO_TICKS(60000);
                        // Save the current total. Do NOT change s_energy_mwh_base during runtime;
                        // it is the "energy at boot" base. This avoids double counting.
                        (void)energy_save_to_nvs(e_total_mwh);
                }

                vTaskDelay(pdMS_TO_TICKS(BL0937_UPDATE_PERIOD_MS));
        }
}

// Relay / plug state (enige bron van waarheid)
// (defined near the top of this file)

// Forward declarations (used by status LED task)
static inline void red_led_write(bool on);

static void status_led_task(void *arg)
{
        (void)arg;

        // 50ms tick gives us stable timing without blocking other tasks.
        const TickType_t tick = pdMS_TO_TICKS(50);
        uint32_t t_ms = 0;

        while (true) {
                led_mode_t mode = s_led_mode;

                switch (mode) {
                case LED_MODE_WIFI_WAIT:
                        red_led_write(true);
                        break;
                case LED_MODE_NORMAL_OFF:
                        red_led_write(false);
                        break;
                case LED_MODE_BL0937_ERROR: {
                        // 1 blink: 200ms ON, rest OFF, repeating every 2000ms
                        const uint32_t phase = t_ms % 2000;
                        red_led_write(phase < 200);
                        break;
                }
                default:
                        red_led_write(false);
                        break;
                }

                t_ms += 50;
                vTaskDelay(tick);
        }
}

// ---------- Low-level GPIO helpers ----------

static inline void relay_write(bool on) {
        gpio_set_level(RELAY_GPIO, on ? 1 : 0);
}

static inline void blue_led_write(bool on) {
        // Blauwe LED: uitsluitend als aan/uit-indicator voor de relay (active low/high afhankelijk van hardware)
        gpio_set_level(BLUE_LED_GPIO, on ? 1 : 0);
}

static inline void red_led_write(bool on) {
        // Rode LED is active high: 1 = AAN, 0 = UIT
        gpio_set_level(RED_LED_GPIO, on ? 1 : 0);
}

// Visual feedback helper: blink the RED LED 3x, but restore its previous state
// afterwards (RED LED is also used for Wi‑Fi status).
static void blink_red_led_3x(void)
{
        const int prev = gpio_get_level(RED_LED_GPIO);
        for (int i = 0; i < 3; i++) {
                red_led_write(true);
                vTaskDelay(pdMS_TO_TICKS(120));
                red_led_write(false);
                vTaskDelay(pdMS_TO_TICKS(120));
        }
        gpio_set_level(RED_LED_GPIO, prev);
}

// Forward declaration van de characteristic zodat we hem in functies kunnen gebruiken
extern homekit_characteristic_t relay_on_characteristic;

// Centrale functie: zet state, stuurt hardware aan en (optioneel) HomeKit-notify
static void relay_set_state(bool on, bool notify_homekit) {
        if (relay_on == on) {
                // Geen verandering, niets te doen
                return;
        }

        relay_on = on;

        // Hardware aansturen
        relay_write(relay_on);
        blue_led_write(relay_on); // Blauwe LED volgt altijd de relay-status

        ESP_LOGI(RELAY_TAG, "Relay state -> %s", relay_on ? "ON" : "OFF");

        // HomeKit characteristic-snapshot updaten
        relay_on_characteristic.value = HOMEKIT_BOOL(relay_on);

        // Eventueel HomeKit-clients informeren
        if (notify_homekit) {
                homekit_characteristic_notify(&relay_on_characteristic,
                                              relay_on_characteristic.value);
        }
}

// All GPIO Settings
void gpio_init(void) {
        // Relay
        gpio_reset_pin(RELAY_GPIO);
        gpio_set_direction(RELAY_GPIO, GPIO_MODE_OUTPUT);

        // Blauwe LED (aan/uit)
        gpio_reset_pin(BLUE_LED_GPIO);
        gpio_set_direction(BLUE_LED_GPIO, GPIO_MODE_OUTPUT);

        // Rode LED: WiFi-status-indicator
        gpio_reset_pin(RED_LED_GPIO);
        gpio_set_direction(RED_LED_GPIO, GPIO_MODE_OUTPUT);

        // Initial state: alles uit, in sync brengen
        relay_on = false;
        relay_on_characteristic.value = HOMEKIT_BOOL(false);
        relay_write(false);
        blue_led_write(false);

        // Bij start is er nog geen WiFi -> status LED in WiFi-wachtstand
        s_led_mode = LED_MODE_WIFI_WAIT;
}

// ---------- Accessory identification (Blue LED) ----------

void accessory_identify_task(void *args) {
        // Blink BLUE LED to identify, then restore previous state
        bool previous_led_state = relay_on; // LED volgt normaal relay_on

        for (int i = 0; i < 3; i++) {
                for (int j = 0; j < 2; j++) {
                        blue_led_write(true);
                        vTaskDelay(pdMS_TO_TICKS(100));
                        blue_led_write(false);
                        vTaskDelay(pdMS_TO_TICKS(100));
                }
                vTaskDelay(pdMS_TO_TICKS(250));
        }

        // Zet LED terug naar de normale toestand (afhankelijk van relay_on)
        blue_led_write(previous_led_state);

        vTaskDelete(NULL);
}

void accessory_identify(homekit_value_t _value) {
        ESP_LOGI(IDENT_TAG, "Accessory identify");
        xTaskCreate(accessory_identify_task, "Accessory identify", configMINIMAL_STACK_SIZE,
                    NULL, 2, NULL);
}

// ---------- HomeKit characteristics ----------

#define DEVICE_NAME          "HomeKit Plug"
#define DEVICE_MANUFACTURER  "StudioPieters®"
#define DEVICE_SERIAL        "NLCC7DFD193A"
#define DEVICE_MODEL         "LS066NL/A"
#define FW_VERSION           "0.0.1"

homekit_characteristic_t name = HOMEKIT_CHARACTERISTIC_(NAME, DEVICE_NAME);
homekit_characteristic_t manufacturer = HOMEKIT_CHARACTERISTIC_(MANUFACTURER, DEVICE_MANUFACTURER);
homekit_characteristic_t serial = HOMEKIT_CHARACTERISTIC_(SERIAL_NUMBER, DEVICE_SERIAL);
homekit_characteristic_t model = HOMEKIT_CHARACTERISTIC_(MODEL, DEVICE_MODEL);
homekit_characteristic_t revision = HOMEKIT_CHARACTERISTIC_(FIRMWARE_REVISION, LIFECYCLE_DEFAULT_FW_VERSION);
homekit_characteristic_t ota_trigger = API_OTA_TRIGGER;

// Getter: HomeKit vraagt huidige toestand op
homekit_value_t relay_on_get() {
        return HOMEKIT_BOOL(relay_on);
}

// Setter: aangeroepen door HomeKit (Home-app / Siri / automations)
void relay_on_set(homekit_value_t value) {
        if (value.format != homekit_format_bool) {
                ESP_LOGE(RELAY_TAG, "Invalid value format: %d", value.format);
                return;
        }

        bool new_state = value.bool_value;

        // Via centrale functie, maar ZONDER notify (originator is HomeKit zelf)
        relay_set_state(new_state, false);
}

// We keep a handle to ON characteristic so we can notify on button presses
homekit_characteristic_t relay_on_characteristic =
        HOMEKIT_CHARACTERISTIC_(ON, false, .getter = relay_on_get, .setter = relay_on_set);

#pragma GCC diagnostic push
#pragma GCC diagnostic ignored "-Woverride-init"
homekit_accessory_t *accessories[] = {
        HOMEKIT_ACCESSORY(
                .id = 1,
                .category = homekit_accessory_category_outlets, // Smart plug / outlet
                .services = (homekit_service_t *[]) {
                HOMEKIT_SERVICE(ACCESSORY_INFORMATION, .characteristics = (homekit_characteristic_t *[]) {
                        &name,
                        &manufacturer,
                        &serial,
                        &model,
                        &revision,
                        HOMEKIT_CHARACTERISTIC(IDENTIFY, accessory_identify),
                        NULL
                }),
                HOMEKIT_SERVICE(OUTLET, .primary = true, .characteristics = (homekit_characteristic_t *[]) {
                        HOMEKIT_CHARACTERISTIC(NAME, "HomeKit Plug"),
                        &relay_on_characteristic,
                        &ota_trigger,
                        &energy_voltage,
                        &energy_current,
                        &energy_power,
                        &energy_energy,
                        NULL
                }),
                NULL
        }),
        NULL
};
#pragma GCC diagnostic pop

homekit_server_config_t config = {
        .accessories = accessories,
        .password = CONFIG_ESP_SETUP_CODE,
        .setupId = CONFIG_ESP_SETUP_ID,
};

// ---------- Button handling ----------

void button_callback(button_event_t event, void *context) {
        switch (event) {
        case button_event_single_press: {
                ESP_LOGI(BUTTON_TAG, "Single press -> toggle relay");

                bool new_state = !relay_on;

                // 1) Zelfde logica als HomeKit, maar nu MET notify
                relay_set_state(new_state, true);

                break;
        }
        case button_event_double_press:
                // Reset cumulative energy without wiping the whole device.
                ESP_LOGI(BUTTON_TAG, "Double press -> reset energy total");
                s_energy_mwh_base = 0;
                (void)energy_save_to_nvs(0);

                // Reset BL0937's internal accumulator. The periodic measurement task
                // will push the updated (0.0) energy value to HomeKit on the next tick.
                (void)bl0937_reset_energy();
                s_energy_reset_requested = true;

                // Visual confirmation for the user (same idea as Identify)
                blink_red_led_3x();
                break;
        case button_event_long_press:
                ESP_LOGI(BUTTON_TAG, "Long press (10s) -> factory reset + reboot");
                lifecycle_factory_reset_and_reboot();
                break;
        default:
                ESP_LOGI(BUTTON_TAG, "Unknown button event: %d", event);
                break;
        }
}

// ---------- Wi-Fi / HomeKit startup ----------

void on_wifi_ready() {
        static bool homekit_started = false;

        // WiFi is nu up -> status LED normaal UIT (tenzij BL0937 error mode hem overneemt)
        if (s_led_mode == LED_MODE_WIFI_WAIT) {
                s_led_mode = LED_MODE_NORMAL_OFF;
        }

        if (homekit_started) {
                ESP_LOGI("INFORMATION", "HomeKit server already running; skipping re-initialization");
                return;
        }

        ESP_LOGI("INFORMATION", "Starting HomeKit server...");
        homekit_server_init(&config);
        homekit_started = true;
}

// ---------- app_main ----------

void app_main(void) {
        ESP_ERROR_CHECK(lifecycle_nvs_init());
        lifecycle_log_post_reset_state("INFORMATION");
        ESP_ERROR_CHECK(lifecycle_configure_homekit(&revision, &ota_trigger, "INFORMATION"));

        gpio_init();

        // Start status LED task (handles RED LED patterns non-blocking)
        xTaskCreate(status_led_task, "status_led", 2048, NULL, 1, NULL);

#if CONFIG_BL0937_ENABLE
        // Step 4: start the BL0937 measurement + HomeKit publisher task
        xTaskCreate(bl0937_homekit_task, "bl0937_hk", 4096, NULL, 5, NULL);
#else
        ESP_LOGI(BL0937_TAG, "BL0937 disabled in sdkconfig (CONFIG_BL0937_ENABLE=n)");
#endif

        button_config_t btn_cfg = button_config_default(button_active_low);
        btn_cfg.max_repeat_presses = 3;
        btn_cfg.long_press_time = 10000; // 10 seconds for lifecycle_factory_reset_and_reboot

        if (button_create(BUTTON_GPIO, btn_cfg, button_callback, NULL)) {
                ESP_LOGE(BUTTON_TAG, "Failed to initialize button");
        }

        esp_err_t wifi_err = wifi_start(on_wifi_ready);
        if (wifi_err == ESP_ERR_NVS_NOT_FOUND) {
                ESP_LOGW("WIFI", "WiFi configuration not found; provisioning required");
                // Geen geldige WiFi-config -> status LED WiFi-wachtstand
                s_led_mode = LED_MODE_WIFI_WAIT;
        } else if (wifi_err != ESP_OK) {
                ESP_LOGE("WIFI", "Failed to start WiFi: %s", esp_err_to_name(wifi_err));
                // Fout bij starten WiFi -> status LED WiFi-wachtstand
                s_led_mode = LED_MODE_WIFI_WAIT;
        }
}
