Apple TV 5 4K – Wall Mount

Apple lanced the new Apple TV 5 4K, Fortunately it has the same dimensions as the previous Apple TV 4. so I can reuse my old design posted here. The goal was to make a flexible mounting system that attaches Apple TV directly to the back of your television or to a wall, simplifying installation and eliminating clutter from your TV area. The Apple TV 4 Mount needs to be especially useful for wall-mounted TVs as it positions Apple TV near the HDMI port, eliminating the need to tunnel the HDMI cable through your wall.

Apple TV 5 4K wall mount – dimensions

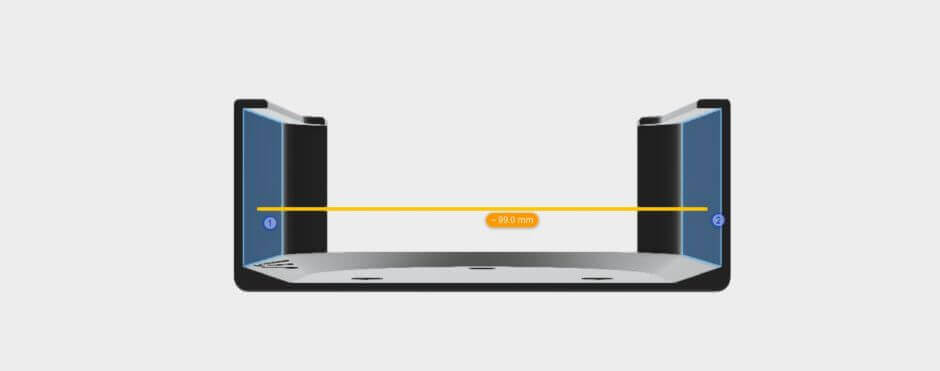

So at first I need the dimensions from the Apple TV 5 4K. Here below you will find the dimensions as I used them to design the Apple TV Wall Mount.

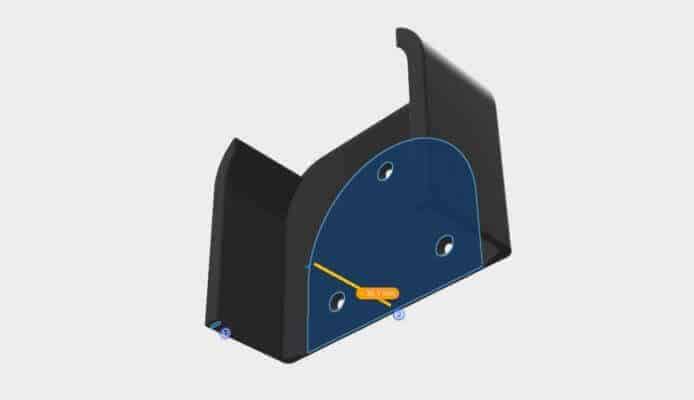

Then the design the wall Mount in Fusion 360. Fusion 360 is a 3D CAD, CAM, and CAE tool that connects your entire product development process in a single cloud-based platform that works on both Mac and PC. You can download it here.

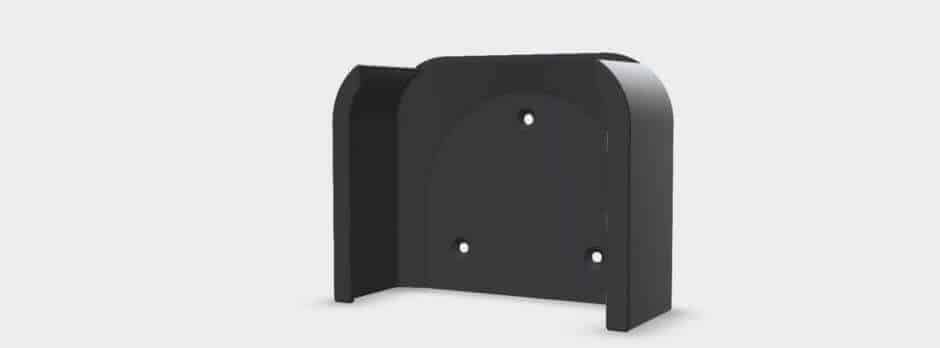

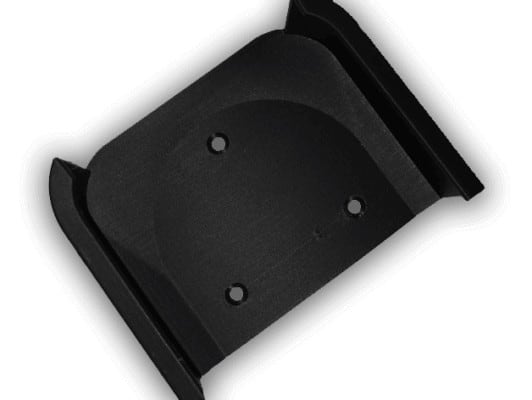

After many hours of designing this is the 3D Printed end product!

Download all Files for this project on Thingiverse.

Do you have any questions? Leave a comment down below!
