The Complete Guide to the BH1750 Digital Light Sensor

The BH1750 is a small digital ambient light sensor from ROHM that reads light directly in lux over I2C. There is no analog signal to scale, no calibration curve and no photoresistor guesswork: you send a command, wait about 120 ms, and read a 16-bit value. It is used for automatic lighting, weather stations, screen backlight control, greenhouses and anywhere you want to know how bright it is.

This guide covers the real specifications from the ROHM BH1750FVI datasheet, the pins of the common breakout, the two I2C addresses, all measurement modes and their commands, the measurement time register for very bright or very dark light, wiring, code, and the traps that give wrong lux values. Breakout boards differ from seller to seller, so check the labels on your own board.

What is in the chip

The BH1750FVI is a digital ambient light sensor IC from ROHM Semiconductor. A photodiode, an amplifier, an ADC and a small logic block are in one tiny package. The spectral response is close to the human eye, and the sensor has little dependence on the type of light source (daylight, incandescent or fluorescent lamps), which is why you can read the number as a real lux value after dividing by 1.2.

Source: ROHM BH1750FVI datasheet (2011).

Getting started

Specifications

Sensor chip

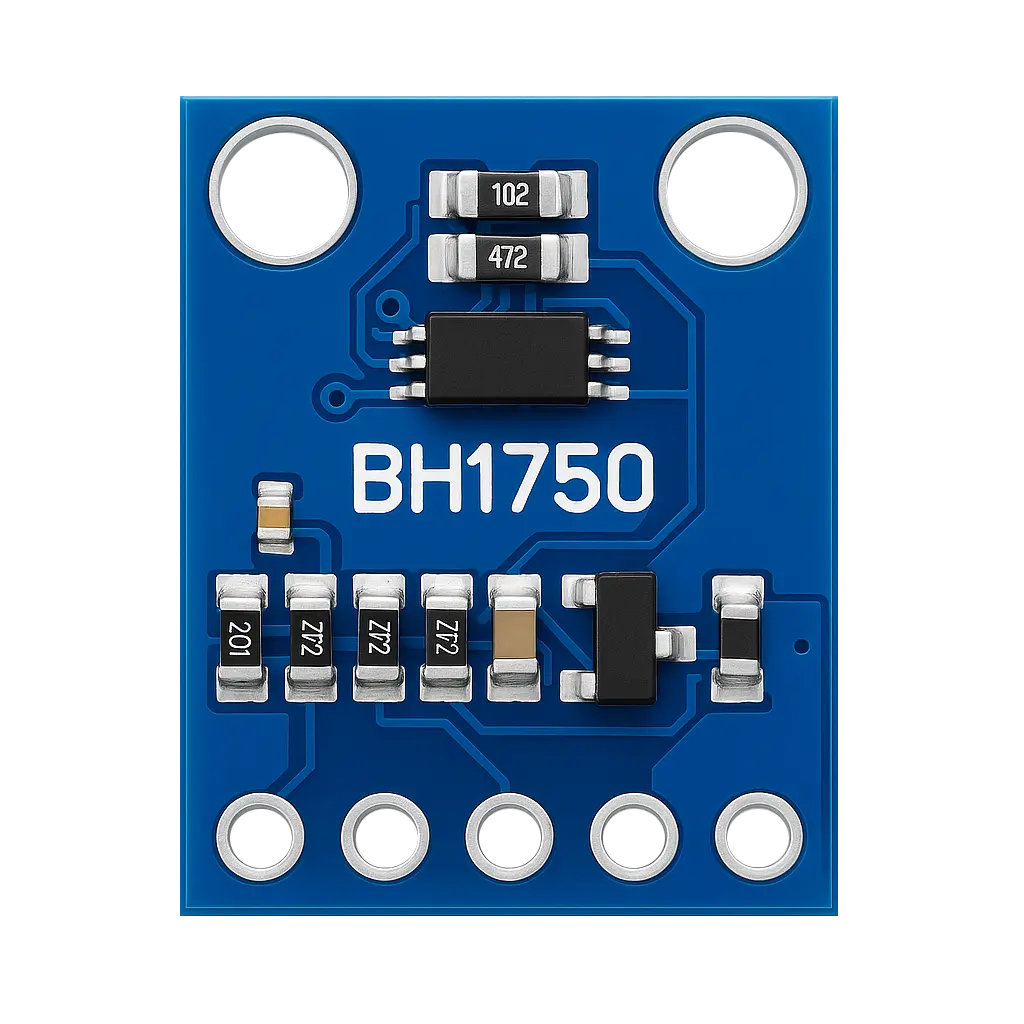

Breakout board

Source: ROHM BH1750FVI datasheet (2011). The breakout data differs per seller.

Dimensions

The chip is a very small SMD package, a few millimetres across. The breakout board comes in many sizes, so measure your own before you design a case. The sensor window is on the top side: put a clear window above it and keep the window clean, and keep the board out of shadow from the case.

Source: ROHM BH1750FVI datasheet. The board size is not given.

Pins

The order of the pins differs between boards, so read the print on yours.

Source: ROHM BH1750FVI datasheet, pin functions.

Wiring

The chip itself takes 3.6 V at most. A breakout with a regulator may also have pull-ups to its own supply, so run it at 3.3 V on a 3.3 V microcontroller.

Software setup

Example code

#include <Wire.h>
#include <BH1750.h>

BH1750 lightMeter;

void setup(){
  Serial.begin(115200);
  Wire.begin(21, 22); // SDA, SCL for ESP32 (use Wire.begin() for Arduino UNO)

  if (lightMeter.begin(BH1750::CONTINUOUS_HIGH_RES_MODE)) {
    Serial.println("BH1750 sensor initialized");
  } else {
    Serial.println("Error initializing BH1750");
  }
}

void loop() {
  float lux = lightMeter.readLightLevel();
  Serial.print("Light: ");
  Serial.print(lux);
  Serial.println(" lx");
  delay(1000);
}

I did not run this sketch on a board, it follows the library example.

Modes and commands

The chip takes single-byte commands. Power it on, choose a mode, wait, and read two bytes. The value divided by 1.2 is the light in lux.

#include <Wire.h>
#define BH 0x23

void setup() {
  Serial.begin(115200);
  Wire.begin(21, 22);
  Wire.beginTransmission(BH); Wire.write(0x01); Wire.endTransmission();   // power on
  Wire.beginTransmission(BH); Wire.write(0x10); Wire.endTransmission();   // continuous H-resolution
}

void loop() {
  delay(180);                                  // 180 ms is the maximum measurement time
  Wire.requestFrom(BH, 2);
  uint16_t raw = (Wire.read() << 8) | Wire.read();
  Serial.printf("%.1f lxn", raw / 1.2f);
}

The sketch has not been run on a board. The ROHM datasheet recommends the H-resolution mode, because its longer integration time rejects 50 Hz and 60 Hz noise from lamps.

Source: ROHM BH1750FVI datasheet, instruction set.

Very bright or very dark light

The measurement time register (MTreg) changes the sensitivity. The default value is 69 (0100_0101). A larger value makes the sensor more sensitive and the measurement longer, so you can read down to about 0.11 lx. A smaller value makes it less sensitive, so you can read up to about 100000 lx, direct sunlight. You must divide the result by the same factor, and the measurement time scales with it, so wait longer when you raise MTreg.

• Send the high bits with 0x40 | (MTreg >> 5) and the low bits with 0x60 | (MTreg & 0x1F).
• Then start a measurement in H-resolution mode 2 for the best resolution.
• The BH1750 library has a setMTreg() function that does all this.
• Without this, the reading maxes out at 65535 counts in bright light.

Source: ROHM BH1750FVI datasheet, adjusting the measurement result for the influence of a window.

Getting good readings

• Put the sensor behind a window with care. A cover or a window dims the light, so use MTreg to compensate, or calibrate against a reference lux meter.
• Keep the sensor out of shadow from the case and from your own body when you test.
• Use H-resolution mode for dark rooms and when lamps flicker.
• Use one-time mode for batteries. The chip powers itself down after each measurement.
• Average a few readings if you control a light, to avoid flicker from noise.
• Add hysteresis to an on-off light control, otherwise the light turns on and off at the threshold.
• Mind the lamp type. The datasheet states the reading is nearly the same for incandescent, fluorescent and halogen light, but check an unusual lamp such as an LED or infrared light against a reference.

Real gotchas

• Divide by 1.2. The raw 16-bit value is not lux. The accuracy figure of 1.2 means the raw reading is 1.2 times the real lux. Libraries do this for you, a hand-written driver must too.
• The chip takes 3.6 V at most. Only boards with a regulator take 5 V.
• Wait for the measurement. 120 ms typical and 180 ms at most in H mode. Reading earlier returns the previous value.
• Two addresses, no more. You can put two sensors on one bus (0x23 and 0x5C), but not three.
• The reading saturates at 65535. In bright sun use a lower MTreg.
• One-time mode needs a new command. After each measurement the chip is in power-down. Send the mode command again.
• The ADDR pin must not float on a bare chip. Connect it to GND or VCC, or the address is not stable.
• Not a spectrometer. The sensor measures visible light, not UV or infrared.

Compared with other light sensors

The numbers for the other sensors are general knowledge and not from a datasheet read for this guide. The VEML7700 appears in the older version of this guide for readings above 65 klux.

What to build with it

The BH1750 is simple but powerful. Here are some applications:

• Automatic lighting: Turn lights on/off based on ambient lux.
• Weather station: Measure daylight brightness, log sun intensity.
• Greenhouse / indoor growing: Monitor plant light exposure.
• Battery optimization: Adjust display brightness based on ambient light.
• Solar tracking: Combine with servo motors to align solar panels with light source.

Safety notes

Conclusion

The BH1750 is an excellent upgrade from a simple photoresistor: a digital lux reading over two wires, with two addresses and several modes. Remember to divide by 1.2, wait for the measurement, and use the measurement time register for very bright or very dark light.

Chip data is from the ROHM BH1750FVI datasheet (2011). The comparison table is general knowledge.
